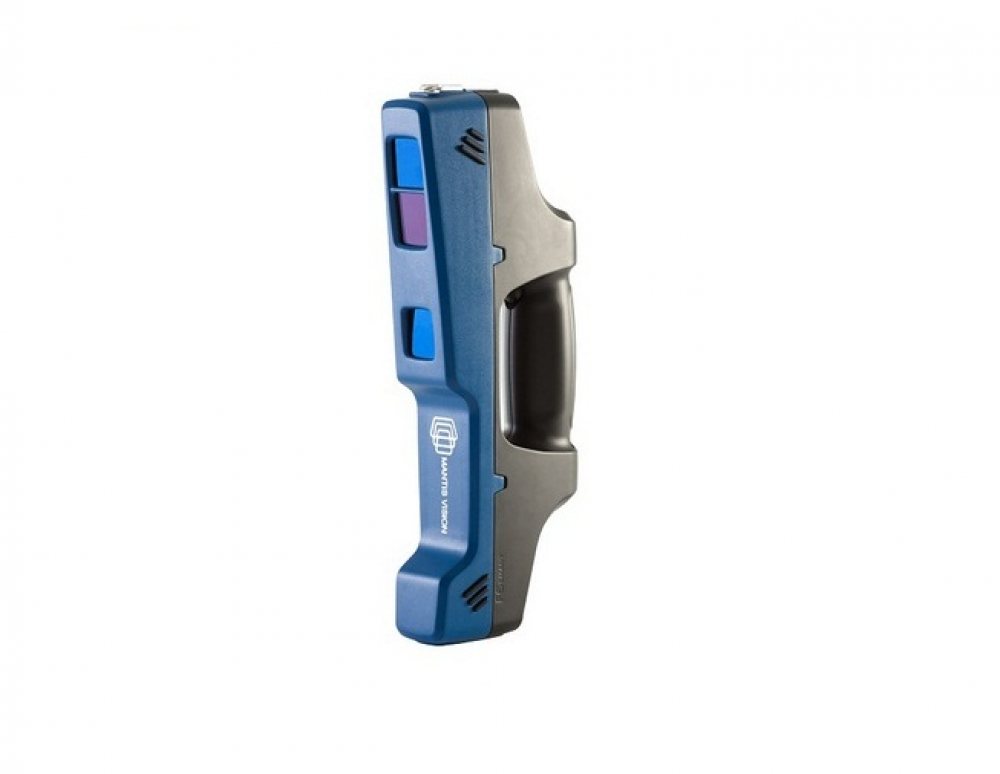

F6 SR

A superb 3D volumetric handheld scanner for highly detailed scans of minimal size objects.

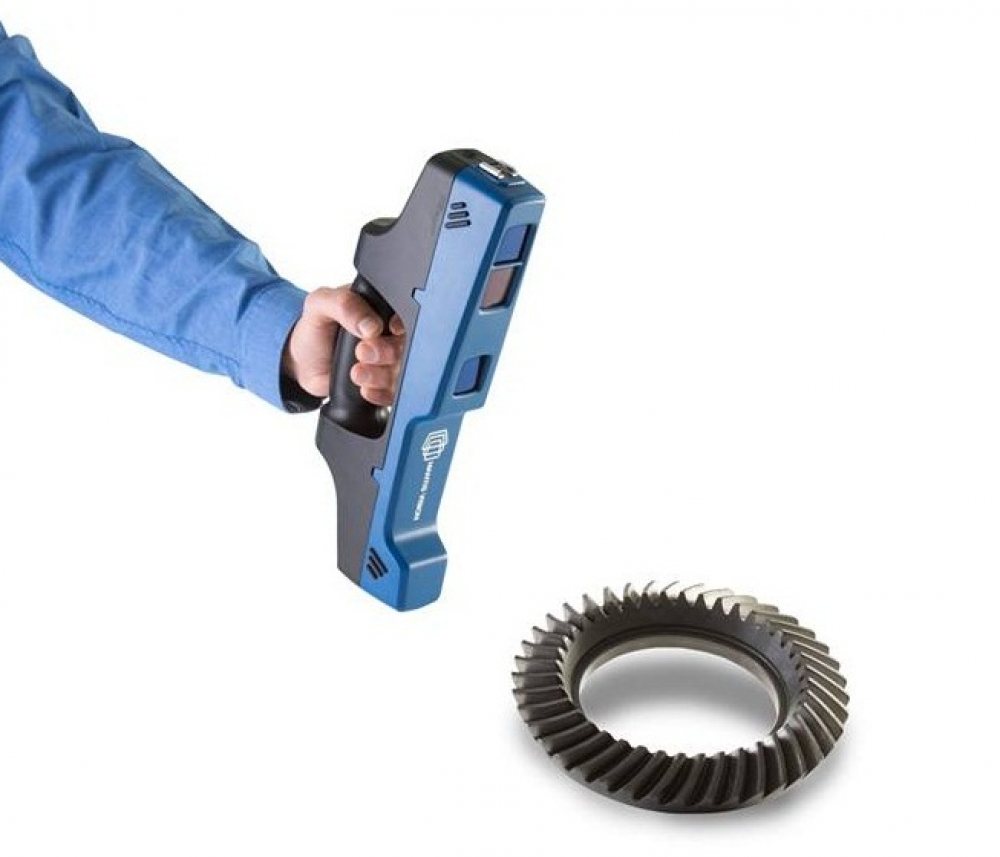

The F6 Short Range (SR) is designed especially for accurate and fast scanning of highly detailed small
objects, positioned in close proximity. Based on a patented algorithm of innovative encoding,
F6 SR provides excellent quality of data, making it the ultimate choice for rapid scanning.
The F6 SR is operated by Echo, an advanced and easy-to-use integrated software with high-end features
such as:

• Advanced scanning modes with real time feedback
• Powerful 3D data editing tools
• Flexible integration to 3rd party software based on Mantis Vision DLL or SDK
• Advanced meshing with full color projection
• Composing registration of models from different scans

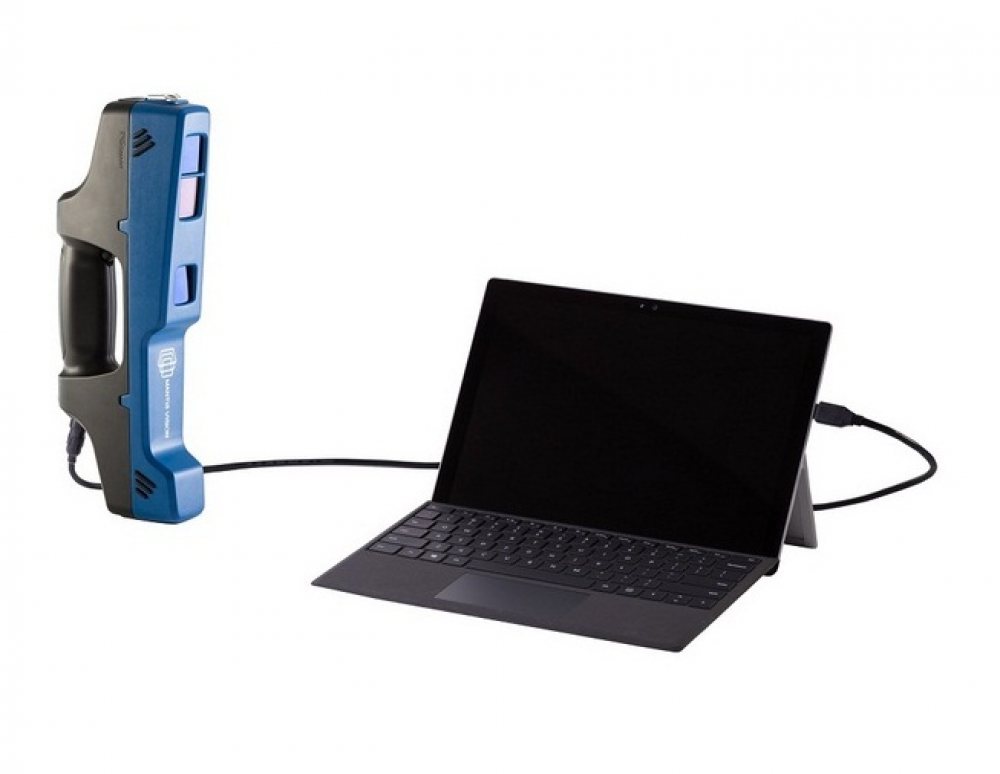

• Multiple interfaces: tablet/laptop/VR
• User interface: touch screen/ desktop

SYSTEM BENEFITS:

• Portable & light weight
• Not limited solely to small objects
• Accurate and fast
• IR light for operation in any lighting conditions
• No scene preparation necessary
• Geometry deciphered via encoding
• Accessibility to hard-to-reach places
• Hot shoe connection for:
• Wireless synchronization of multiple F6 devices for dynamic motion capture
• Flash light
• User friendly – operable following a brief training

INDUSTRIES AND APPLICATIONS:

F6 SR is suitable for a wide variety of uses and applications:
• Automotive and marine
• Architecture, Engineering, Construction
• Forensics
• Education & Research
• Aviation
• Designers
• Art
• VR game designers and special effects

TECHNICAL SPECIFICATIONS

Hardware specifications

Accuracy 90micron @ 250mm
Depth resolution 0.4mm @ 250mm
XY point density 5mrad
noise level less than 0.25mm @ 250mm
Eye safety Class 1
Ambient lighting 0 - 100,000 Lux
Clearance distance 250mm
Depth of field 500mm
Linear field of view HxW 343 x 246mm, closest range
Linear field of view HxW 740 x 1030mm, furthest range
Angular field of view HxW 54° x 68°
RGB camera resolution 1.3MPix
Video frame rate 8fps
Exposure time 0.005 - 0.04s
Max points per frame 80,000
Data acquisition speed 640,000 points/s
Dimensions, HxDxW 32 x 12 x 4.5 cm
Weight 1kg
Power consumption Internal battery
Calibration No special equipment required
Working temperature 0° to +50° / 14’ to 122’F

Software specifications

Support OS Windows 7/8/10
Output formats PTS, ASCII, PLY, E57, STL, MP4
Interface USB 2.0
